Direct thermal and thermal transfer labels help with different jobs for thermal label manufacturers. Direct thermal labels work well for logistics, warehousing, and supply chain management. These labels are good when you need shipping and barcode tags printed fast and cheaply. Thermal transfer labels are better for jobs that need images to last longer. These jobs include retail, medical, and POS receipts. Each label type has its own special benefits. Manufacturers should think about durability, cost, use, and printer compatibility before choosing a label printing technology.
Key Takeaways
Direct thermal labels print quickly and are cheaper, but they do not last long and can fade in heat or sunlight.
Thermal transfer labels use ribbons to make strong prints that last a long time and can stand up to heat, chemicals, and sunlight.
Manufacturers should pick labels by thinking about how long the label must last, where it will be used, and how much money they can spend.
Direct thermal printers are easier to take care of and do not need ribbons, but thermal transfer printers need ribbons and more attention.
Talking to experts and trying out labels helps manufacturers choose the right label for each job and stops expensive mistakes.

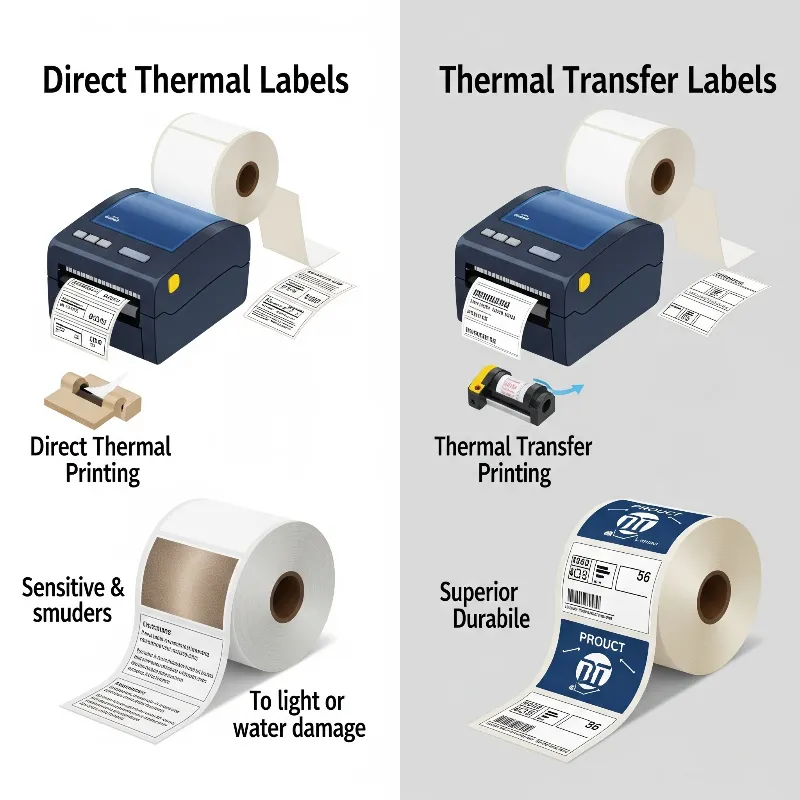

Quick Comparison
Key Differences
Thermal label manufacturers look at both label types. They want to pick the best one for each job. Each label type prints in a different way. Direct thermal labels use special paper that changes color with heat. This kind of label does not need ink, toner, or ribbons. Thermal transfer labels use a ribbon. The ribbon melts ink onto the label. This makes pictures and words that last longer.
The table below shows how these two label types are different:
Feature | Direct Thermal Labels | Thermal Transfer Labels |
|---|---|---|
Printing Method | Heat-sensitive paper; no ribbon needed | Ribbon melts ink onto label surface |
Durability | Short lifespan; fades with heat, UV, scratches easily | Lasts up to 2 years; resists sunlight, chemicals, heat |
Maintenance | Low; fewer supplies needed | Higher; ribbon replacement required |
Print Colors | Black only | Supports color printing |
Cost | Lower; no ribbon cost | Higher; ribbon and supplies add cost |
Environmental Impact | Less waste; lower carbon footprint | More waste from ribbons |
Shelf Life | Shorter | Longer |
Note: Direct thermal labels are best for short-term jobs. Thermal transfer labels are better for long-lasting needs.
Main Applications
Manufacturers pick a label type for each use. Direct thermal labels are good for shipping and tracking items. These labels are best for things that do not last long. Thermal transfer labels work well in tough places. They do not fade or get ruined by sun, chemicals, or heat. Many companies use thermal transfer labels for product tags and asset labels. They are also used for things stored outside. This label type can print in color. Color helps with branding and following rules.
Picking the right label helps it last as long as needed. It also makes sure the label works for the job.
Direct Thermal Labels
Direct Thermal Printing
Direct thermal printing is a common way to print labels. It uses special paper that changes color when heated. The printer does not need ink, toner, or ribbons. The printhead gets hot and makes words and pictures on the label. This method prints fast, so it is good for busy places.
Many companies use direct thermal labels for shipping and storing things. These labels are great when you need them quickly and want clear barcodes. Direct thermal label printers work well for big jobs. The process is simple and does not make a mess. You do not have to change ribbons or cartridges, which saves time and money.
Pros & Cons
Direct thermal labels have many good points for thermal label manufacturers:
They cost less because you do not buy ink, toner, or ribbons.
They print fast, which helps with lots of shipping and moving items.
The process is clean and easy, with little upkeep needed.
Barcodes, tracking numbers, and addresses print clearly.
They do not smudge, so they stay clear in cold or bright places.
They work for many jobs, like courier and warehouse labels.
Note: Direct thermal labels are best for short-term jobs. The print can fade or get dark from heat, sunlight, or rubbing. These labels do not last long in tough places. The print gets worse over time, so the label does not last. Direct thermal printing is not good for labels that need to last a long time or face chemicals and water.
Thermal label printers that use direct thermal printing are easy for many businesses. But manufacturers should think about the limits before picking this label for long-lasting or outdoor jobs.

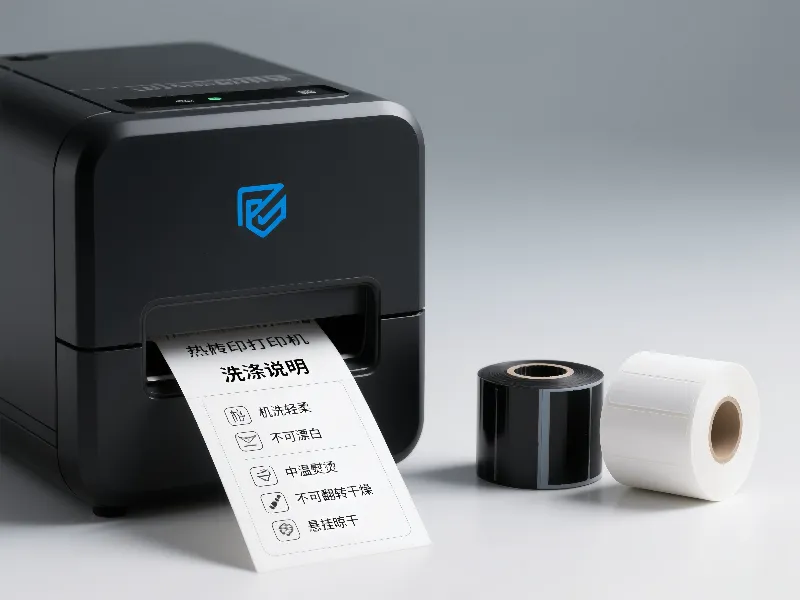

Thermal Transfer Labels
Thermal Transfer Printing
Thermal transfer printing uses a ribbon to make words and pictures. The printer heats the ribbon, and the ink melts onto the label. This makes the label look sharp and clear for a long time. Many businesses use these printers for product names, tracking, and safety tags. These printers work with paper, plastic, nylon, polyester, and vinyl. This lets companies pick the best label for each job.
Thermal transfer printing is used in stores, factories, and shipping. Companies use these labels for barcodes, tags, and keeping track of items. These printers can print one label or many at once. This helps with lots of business needs. Printing in color is good for brands and following rules.
Pros & Cons
Thermal transfer labels have many good points for companies:
They do not wear out fast and can handle heat, sun, chemicals, and scratches.
The labels have clear words and pictures.
These printers use different ribbons, so they work in tough places.
The labels last longer than direct thermal labels, so they are good for long jobs.
Printing is quick, which helps move things faster.
You can print on many kinds of materials for different needs.
They cost less to keep running than inkjet or laser printers.
But there are also some problems with thermal transfer labels:
You have to change ribbons, which can be hard to do.
Changing heat settings for each label type can take a lot of time.
Ribbons are made from plastic, which can hurt the environment because of waste.
Note: Thermal transfer labels are best when you need strong, long-lasting labels. Companies should think about the extra costs and work before picking this label type.
Durability & Lifespan
Environmental Resistance
Durability is very important when picking labels for different places. Direct thermal labels can change if they get too hot or are in the sun. They can also get ruined if they are scratched. These labels might fade or turn dark if they are in sunlight or heat. In warehouses, direct thermal labels may only last about six months. This is because the conditions are tough. Humidity and chemicals can also make these labels yellow or smudge. This means direct thermal labels are not good for outside or factory use.
Thermal transfer labels are much stronger in bad weather. They do not get ruined by sunlight, water, chemicals, or very hot or cold temperatures. The ribbon printing makes these labels tough. They do not scratch or fade easily. These labels stay easy to read, even in hard places. Many manufacturers use thermal transfer labels for tracking things and for jobs that need strong labels.
Tip: If something is kept outside or near chemicals, thermal transfer labels work better for a long time.
Print Longevity
Print longevity means how long you can read a label. Direct thermal labels usually last from 12 to 24 months if kept cool and dry. Sometimes they last longer, but that does not happen often. Most direct thermal labels lose their print fast in hot or bright warehouses. This makes them not good for tracking things for a long time.
Thermal transfer labels keep their print for many years. They stay clear and easy to scan, even in tough places. This is why people pick them for tracking things for a long time or for rules that need strong labels. Manufacturers who want labels to last a long time pick thermal transfer because it works well and lasts.
Label Type | Environmental Resistance | Print Longevity |
|---|---|---|
Direct Thermal | Low (sensitive to heat, light) | 6-24 months |
Thermal Transfer | High (resists UV, chemicals) | Several years |
Cost Factors
Upfront vs Ongoing Costs
Cost is very important when picking a printer. Direct thermal and thermal transfer printing have different costs. These costs matter a lot if you print many labels.
The table below shows the main costs over five years:
Cost Factor | Direct Thermal Printing | Thermal Transfer Printing |
|---|---|---|
Media Costs | Labels cost more, but no ribbon is needed | Labels cost less, but you need ribbons, so total cost is higher |
Print Head Life | Print heads wear out faster and need to be replaced more often | Print heads last longer because the ribbon protects them |
Ribbon Usage | No ribbons are used | Ribbons are needed, which adds cost and causes more stops |
Downtime | Less downtime because you do not change ribbons | More downtime from changing ribbons, which takes time |
Operational Impact | You save on ribbons and time, but pay more for labels and print heads | Ribbons and downtime cost more, but print heads last longer |
Direct thermal printing does not use ribbons, so you save money there. You also save time because you do not stop to change ribbons. But the labels cost more, and you have to replace print heads more often. This can make the total cost go up. Thermal transfer printing needs ribbons, so you spend more money and time on them. But the print head lasts longer, so you do not replace it as much. Manufacturers need to think about these costs to pick the best printer for their needs.
Maintenance
Direct thermal and thermal transfer printers need different care. Direct thermal printers can have problems if the print head gets dirty or worn out. Bad labels or too much dust and moisture can also cause trouble. If you load paper the wrong way or if rollers get old, the printer might jam. Cleaning the print head and rollers often helps the printer work well.
Thermal transfer printers have some of the same problems. But they also have ribbon issues. The ribbon can wrinkle, break, or be the wrong kind. You need to check the printer so it does not skip labels or feed them wrong. You must clean the print head and rollers, change old parts, fix ribbon tension, and use the right ribbon and label together. These extra steps make thermal transfer printer care harder.
Tip: Clean your printer and use good supplies. This helps both printer types work well and keeps costs down.
Printer Compatibility
Direct Thermal vs Thermal Transfer Printers
Thermal label printers come in two main types. These are direct thermal label printers and thermal transfer label printers. Each type uses a different way to print. They also need different things to work right.
Direct thermal label printers use direct thermal printing. These printers do not use ribbons. They use heat to make marks on special thermal paper. This is good for businesses that want fast and easy labels. There are mobile, desktop, and industrial direct thermal printers. Mobile printers use a 3/4″ core and hold small rolls. They are good for jobs where you move around. Desktop printers use 1″ core rolls with a 4″ outer diameter. These are for medium jobs. Industrial printers use 3″ core rolls with an 8″ outer diameter. These are for big jobs and heavy use. Some printers can also use fanfold stacks for special jobs.
Printer Type | Core Size / Format | Ribbon Requirement | Technical Notes |
|---|---|---|---|
Mobile Printers | 3/4″ Core | No ribbon required | Portable, for smaller rolls and on-the-go printing. |
Desktop Printers | 1″ Core Rolls, 4″ OD | No ribbon required | Medium volume, standard roll sizes. |
Industrial Printers | 3″ Core Rolls, 8″ OD | No ribbon required | High volume, large rolls, and fanfold stacks. |
Fanfold Formats | Fanfold Stacks | No ribbon required | Used in printers that accept fanfold media. |
Direct thermal printing works best with special paper. This paper is not top-coated and is treated with chemicals. The sticky part should be a special acrylic that does not leak. These labels stick to many things. They work in cold and hot places, from -4ºF to +176ºF. If you store them right, they last about one year.
Thermal transfer label printers use thermal transfer printing. These printers need ribbons. The ribbon melts ink onto the label. To work well, you must match the ribbon size to the label and printer. The way the ribbon is wound is important. Some printers use Coated Side Out ribbons. Others use Coated Side In ribbons. Ribbon core size is different too. Desktop printers use small cores. Industrial printers use 1-inch cores. Print speed and how clear the print is should match the ribbon quality. Picking the right ribbon type is important. Wax ribbons are good for paper labels inside. Wax/resin ribbons are for mixed places. Resin ribbons are best for plastic labels and tough jobs. Where you use the label matters. Outside or factory jobs need ribbons that can handle sun or chemicals. Taking care of the printer is important. Put the ribbon in right and clean the printer often. This helps the printer work well.
Tip: Always check what your printer needs before picking ribbons or labels. This helps you get the best print and keeps the printhead safe.
Thermal transfer label printers can print on many kinds of labels. They work in lots of places. Direct thermal label printers are simple and save money for short jobs.
Choosing for Thermal Label Manufacturers
Application Scenarios
Thermal label manufacturers have many choices to make. They must pick the right label for each job. The choice depends on how long the label needs to last. It also depends on where the label will go and what it must handle. Direct thermal labels are best for short-term use. These labels are often found on shipping boxes and receipts. They are also used on food packaging. These labels work well where there is not much heat or sunlight. They are good if the label will not get scratched. In the food and beverage industry, direct thermal labels help track products. They follow items from the warehouse to the store. These labels print fast. This makes them great for busy places like logistics.
Thermal transfer labels are stronger and last longer. Manufacturers use them for product ID and asset tracking. They are good for things that face tough conditions. In healthcare, direct thermal labels are used for patient wristbands. They are also used for samples that do not need to last long. But thermal transfer labels are better for long storage. They work for lab samples and items that see chemicals or water. These labels also stick well to curved or shiny surfaces. Bottles and equipment tags often use them.
Manufacturers must think about storage and the environment. Freezer adhesive labels stay sticky in cold places. Heat-resistant labels do not fall off in hot areas. Synthetic direct thermal labels are fast and tough. They work in wet or rough spots. Storing unused labels in cool, dry places keeps them good.
Tip: Always pick a label that matches how long it needs to last, where it will be kept, and how it will be handled.
Decision Guide
Picking the right label takes careful steps. Thermal label manufacturers should look at some main things before choosing. The table below shows what to think about:
Criteria | Direct Thermal Labels | Thermal Transfer Labels |
|---|---|---|
Shelf Life | Short (6-8 months), sensitive to heat and light | Long (up to 2 years), durable in harsh conditions |
Printing Supplies | No ribbons, low maintenance | Requires ribbons, higher maintenance |
Print Quality | Sharp, high-resolution, supports color | |
Environmental Resistance | Not suitable for harsh environments | Withstands chemicals, moisture, UV, and abrasion |
Budget | Higher initial and ongoing costs | |
Volume & Complexity | Best for simple, low- to medium-volume jobs | Ideal for high-volume printing and complex labels |
Material Compatibility | Mostly paper-based, limited surfaces | Works on paper, synthetic, curved, and glossy surfaces |
Manufacturers can use these steps to help them decide:
Define the Label’s Purpose
Is the label for shipping, product ID, or asset tracking?
Does it need to last a few days, months, or years?
Assess Environmental Exposure
Will the label face heat, sun, chemicals, or water?
Is it stored in a freezer, outside, or in a factory?
Consider Print Quality and Appearance
Does the label need to look sharp for branding or rules?
Will it need color or printing on both sides?
Review Budget and Volume Needs
Is the project trying to save money or does it need to last?
Will you print a lot of labels or use special designs?
Check Printer Compatibility
Does your printer use direct thermal or need ribbons?
Are there people who can fix or care for the printer?
Note: Direct thermal labels are best for short-term, indoor, and low-cost jobs. Thermal transfer labels are better for long-lasting, busy, and tough places.
Manufacturers should talk to experts or trusted suppliers. Many suppliers offer special label materials and ribbon types. They also have topcoats for different industries. Expert help makes it easier to find the right label for each job. Some suppliers give guides and testing to make sure the label works.
Manufacturers who work with skilled suppliers get full solutions, help when needed, and new label technology.
Comparison Table
It is easier to pick a label when you can compare them side by side. The table below shows the most important things for thermal label manufacturers. It talks about how long labels last, how much they cost, how good the print looks, and how well they handle tough places.
Feature / Metric | Direct Thermal Labels | Thermal Transfer Labels |
|---|---|---|
Label Lifetime | Less than 6 months | More than 6 months, ideal for long-term use |
Environmental Resistance | Sensitive to UV, water, chemicals, abrasion | Resists UV, water, chemicals, abrasion |
Print Durability | Fades over time, lower durability | Long-lasting, high durability |
Print Quality | Good for basic barcodes and text | High-quality prints, sharp images |
Material Compatibility | Needs heat-sensitive media | Works with paper, plastic, polyester |
Printer Mechanics | No ribbon needed, simple design | Needs wax or resin ribbons, more components |
Cost Factors | Lower printer cost, higher label cost | Higher printer and ribbon cost |
Application Suitability | Best for shipping, receipts, short-term use | Best for asset tracking, harsh environments |
Color Options | Black only | Color possible with special ribbons |
Tip: If you need strong, clear labels for hard jobs, you should look at thermal transfer technology. This way gives better print quality and works with many kinds of label materials.
Thermal transfer labels are great because they make sharp prints that last a long time. They do not fade from sun, water, or chemicals. Direct thermal labels are best for short jobs like shipping or tags that do not need to last. They are simple and save money if you do not need the label to last long.
Manufacturers should look at this table before they choose. The best label depends on how long it needs to last, where it will be used, and how good the print must be.
Direct thermal and thermal transfer labels help with different jobs. Manufacturers need to pick the right label for each use. They should think about how long the label must last, where it will be used, and how much money they can spend. Talking to experts can help them choose the best label. Many top companies suggest using this checklist:
Pick how long you want the label to last.
Look at the price and how much care is needed.
Think about how many labels you need to keep in stock.
Check if the printer will stop working or if the printhead will wear out.
Think about how the label affects the environment.
See if new linerless labels are a good choice.
Picking the right label helps it work well and saves money.
FAQ
What is the main difference between direct thermal and thermal transfer labels?
Direct thermal labels use special paper that changes color with heat. They do not need ribbons to print. Thermal transfer labels use a ribbon with ink. The printer melts the ink onto the label. This makes thermal transfer labels last longer. They also do better in tough places.
Can thermal transfer printers use direct thermal labels?
Most thermal transfer printers can print both label types. You must take out the ribbon to use direct thermal labels. Always read the printer’s manual before changing label types.
Which label type works best for outdoor use?
Thermal transfer labels are best for outside jobs. They do not fade in sunlight or water. They also stand up to chemicals. Direct thermal labels fade fast outside and do not last long.
Are direct thermal labels more eco-friendly?
Direct thermal labels make less trash because they do not use ribbons. But some thermal papers have chemicals in them. Manufacturers should look for eco-friendly paper if they care about the planet.
How can manufacturers choose the right label type?
Manufacturers should think about how long the label needs to last. They should also think about where it will be used, how good it must look, and the cost. They can use a decision table or ask a label expert for help.
Tip: Always try out labels in real life before making your final pick.
